 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Sep 19, 2010 1:00 am
Offline
Neon Enthusiast
User avatar

Joined: Fri Aug 27, 2010 11:25 am
Posts: 106
Location: Covina
Steve_In_Fullerton wrote:
I have remelted the connections on those two connectors, but alas, that is not the problem. Usually, my speedometer is the gauge that cuts out. But my gauges are all occasionally cutting out at the same time, along with all the lights, and the problem is actually the pins and sockets not connecting properly, not cracked solder joints. I found this out when all the gauges dropped out and I pushed in on the bottom of the gauge cluster and they all came back to life. Bending the pins a little helps, as does shimming the connectors that are connected to the dash. This pushes them further in to the sockets on the cluster. It is a really poor design, and I still have problems with them. If you pull out the cluster and resolder the pins, the simple act of replacing the cluster causes the pins to connect right for a while, then vibration and heat make them disconnect a bit. I suppose the only long-term solution would be to hard-wire the connections somehow, and replace the bad connectors with better ones.

When all of my gauges had went down at the same time, I tapped on the top of my dash and they all jumped back up.

_________________
Blue 98 2Dr Dodge Neon R/T DOHC
18" XXR 006 Rims & 215/40/18 Tires
KYB GR-2 Struts
1st impressions, make wrong perceptions!
So always check under the hood before you run your mouth!


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Sep 20, 2010 12:00 am
Offline
Neon Enthusiast
User avatar

Joined: Sun Jul 11, 2010 9:43 am
Posts: 241
I've done that as well. It's those stinking connectors. It takes the most microscopic movement to pull them apart.

_________________
1998 Highline Sedan, AKA Ghostrider


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Nov 21, 2010 3:39 am
Offline
Neon Enthusiast

Joined: Sun Nov 21, 2010 2:58 am
Posts: 309
Location: orlando florida
all my gauges work except gas it marks empty always no matter what,even if all the way full and low gas light on so i kno it should work....im thinking sending unit....u?

_________________
95 SOHC/MTX highline coupe
Kirk long tube w/dei wrap, Magnaflow muffler, Cat delete, Gates Racing timing belt, Granatellis 8mm wires and coil, Boogers, Modern heat shield, ATX TB,CAI, polyurethane motor mounts,pennzoil synchromesh tranny fluid


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Nov 21, 2010 9:36 am
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 12:04 am
Posts: 6587
Location: 55403 MNNeons.net
Need one?

Dealer:
Quote:
4897415AA $106.00
Fuel system - Fuel system components - Gauge
Gauge 1995 - 1996


I have 'em used, tested for $10 + (ship, only be a ~$1.75)

You can go to Ma mopar for the gasket, or I'll send one for $4

Quote:
6501463 $4.00

SEAL PUMP UNIT

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Nov 21, 2010 5:25 pm
Offline
Neon Enthusiast
User avatar

Joined: Sun Oct 17, 2010 10:35 pm
Posts: 1634
Location: middle TN
This has nothing to do with soldering, but sure helps the other side. Whiteface kit looks way cooler than stock IMO.

_________________
96 Chevy S10 ZR2
96 FR Coupe sold to my lil sister...but I still claim it.
97 FR Sport dohc atx coupe..(SOLD)
98 R/T Black/silver....gone to scrapper
99 RT Red/silver (SRT'd 2.0) 54K miles since turbo and still going strong.....
04 Bought it with 80K actual miles
05 SRT4 Flame red (sold)
98 IB Sport Sedan (new toy)

07 Honda Foreman 500 2" lift kit, 27" ITP Swamplites (my mud/rock climbing machine)


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Nov 21, 2010 6:27 pm
Offline
Neon Enthusiast
User avatar

Joined: Fri Aug 27, 2010 11:25 am
Posts: 106
Location: Covina
cbr900racer77 wrote:
This has nothing to do with soldering, but sure helps the other side. Whiteface kit looks way cooler than stock IMO.

Where did you get the white gauges with the black overlay?

_________________
Blue 98 2Dr Dodge Neon R/T DOHC
18" XXR 006 Rims & 215/40/18 Tires
KYB GR-2 Struts
1st impressions, make wrong perceptions!
So always check under the hood before you run your mouth!


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Nov 21, 2010 9:04 pm
Offline
Neon Enthusiast
User avatar

Joined: Sun Oct 17, 2010 10:35 pm
Posts: 1634
Location: middle TN
I got it from amazon.com Can't remember the name of company that actually makes the overlay (I've since thrown away the package). It was 24.99 including shipping. I liked it cause you don't have to remove the needles. Just spray back with water/dishwashing liquid and pull the stop pins. Get them positioned then squeegee excess water out. That is stock cluster with just the white overlays.

_________________
96 Chevy S10 ZR2
96 FR Coupe sold to my lil sister...but I still claim it.
97 FR Sport dohc atx coupe..(SOLD)
98 R/T Black/silver....gone to scrapper
99 RT Red/silver (SRT'd 2.0) 54K miles since turbo and still going strong.....
04 Bought it with 80K actual miles
05 SRT4 Flame red (sold)
98 IB Sport Sedan (new toy)

07 Honda Foreman 500 2" lift kit, 27" ITP Swamplites (my mud/rock climbing machine)


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Feb 13, 2011 12:41 am
Offline
Neon Enthusiast

Joined: Fri Feb 11, 2011 8:31 pm
Posts: 98
Great post!! Did it yesterday hardly took me anytime at all. Only issue I ran into was the flow wouldn't come off onto some of the points... but it was mainly my speedo and gas gauge that was messing up... and now... when I get pulled over and they ask if I know how fast I was going, I can answer "yes" with a big smile on my face... thanks again.

_________________
__________________________________________
'96 SOHC


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Feb 28, 2011 2:42 pm
Offline
Site Supporter
User avatar

Joined: Tue Aug 12, 2008 9:13 am
Posts: 141

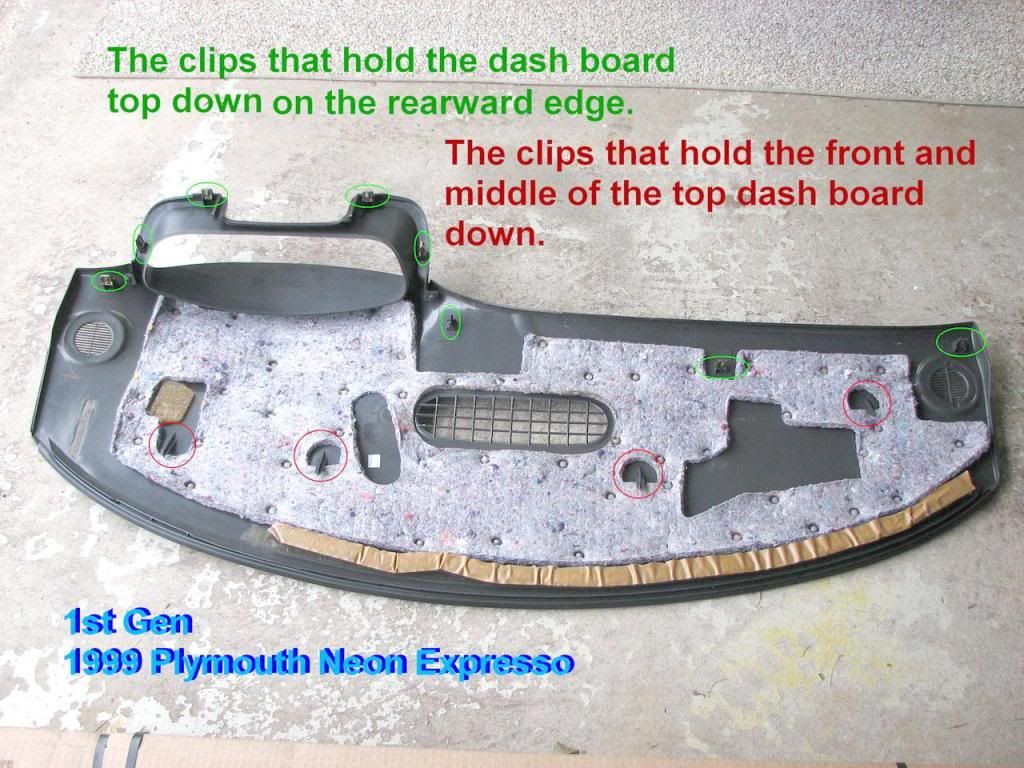

Here are couple pics I made to help people remove the dash top so they can easily get to the instrument cluster.
Now you will know exactly where to put your pry-bar to lift up the dash.



_________________
1st Gen 1999 Plymouth Neon Expresso DOHC ATX Sedan - Original Owner


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Feb 28, 2011 4:12 pm
Offline
Neon Enthusiast
User avatar

Joined: Fri Aug 27, 2010 11:25 am
Posts: 106
Location: Covina
baby99neon wrote:
Here are couple pics I made to help people remove the dash top so they can easily get to the instrument cluster.
Now you will know exactly where to put your pry-bar to lift up the dash.



A pry bar? Lmao... Don't you think that's use of excessive force? You can practically pull that thing off with ur bare hands.

_________________
Blue 98 2Dr Dodge Neon R/T DOHC
18" XXR 006 Rims & 215/40/18 Tires
KYB GR-2 Struts
1st impressions, make wrong perceptions!
So always check under the hood before you run your mouth!


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Apr 18, 2011 4:01 pm
Offline
Neon Enthusiast
User avatar

Joined: Thu Jan 17, 2002 9:53 pm
Posts: 1385
Location: Orlando Florida,watching Zimmerman do a Casey Anthony
so, the first thing to do is, re-solder the pins, bend the pins slightly for tighter contact, then shim the plugs to the dash, then get a new speedo sensor, then put a new speed output ring on the differencial

and if all of that doesn't work then what?

_________________
i can build an engine with no instuctions, but i can't tie a neck tie! don't judge me ;)
MY PROJECT LOG FOR THE NOOBS, GET TO KNOW ME


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Apr 18, 2011 4:30 pm
Offline
Global Moderator
User avatar

Joined: Tue Dec 14, 2004 8:15 am
Posts: 8140
Location: Northwest Wisconsin
Wiring, it's not wireless like the internet! Check continuity of the WH/OR from the speed sensor to the PCM pin 66 (pin 5 for '95 PCM) and to the instrument cluster pin 10. Make sure the OR wire has at least 8 volts at the sensor and that the BK/LB is actually a ground.

_________________
Case


98 Sport Coupe Alpine Green ATX stock
98 Sport Coupe Amethyst ATX to MTX swap (son's)
97 Expresso Coupe Black ATX stock (daughter's)
97 Sport Coupe Magenta ATX stock (wife's)
95 NYG ACR Coupe (restored to stock)
03 Dakota QC 4.7 4x4 ATX Patriot Blue stock

Can your key can be made from one of the free keys?
http://forums.neons.org/viewtopic.php?f=3&t=402268


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Apr 18, 2011 4:46 pm
Offline
Site Supporter
User avatar

Joined: Mon Apr 18, 2011 4:44 pm
Posts: 365
Location: Detroit, MI
I read about this repair somewhere and thought, "why would i need to resolder the leads?". Then I took my cluster out and saw haha. Very easy fix and just melting the solder wont help if it is partially cold soldered or is lacking the amount of solder needed for a good connection. If you are familiar with soldering it is very simple, if not watch a 10 minute youtube video on how to, oh wait he made one :good:

_________________
1997 2.4 Swapped ATX with SRT Turbo


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Apr 28, 2011 2:37 pm
Offline
Site Supporter
User avatar

Joined: Sat Apr 09, 2011 10:08 pm
Posts: 387
Location: Villa Park, IL
Another satisfied customer. I almost check watching it and forget to watch the road. It really is that quick. BTW, I left the light bulbs in place.


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Apr 28, 2011 3:18 pm
Offline
New

Joined: Thu Apr 28, 2011 3:11 pm
Posts: 4
My dash started with just the Speedometer problem, the bouncing, and then everything went out(not the lights though) I did the resolder: however that didn't work. As i said the lights work, but Non of the gauges to, so i don't think it has anything to do with the speed sensor, what else could it be?


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Apr 28, 2011 4:34 pm
Offline
New

Joined: Thu Apr 28, 2011 3:11 pm
Posts: 4
I also just checked the fuse and it is fine.


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Apr 28, 2011 10:15 pm
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 12:04 am
Posts: 6587
Location: 55403 MNNeons.net
NEVER seen a problem with a board, I've done many!!!!!!

You could be the unlucky guy who's a first.

Do the re-solder again. I always add a bit of solder.

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Apr 28, 2011 11:02 pm
Offline
Neon Enthusiast
User avatar

Joined: Fri Aug 27, 2010 11:25 am
Posts: 106
Location: Covina
I have this problem and haven't gotten around to fixing it yet cuz it doesn't happen that often. I solder everyday cuz I fix ipod touch's on ebay. I would suggest that you get you some flux to put on the solder points before you remelt them. The flux helps the solder to flow easily and make the solder adhere better.

_________________
Blue 98 2Dr Dodge Neon R/T DOHC
18" XXR 006 Rims & 215/40/18 Tires
KYB GR-2 Struts
1st impressions, make wrong perceptions!
So always check under the hood before you run your mouth!


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun May 01, 2011 11:23 am
Offline
New

Joined: Thu Apr 28, 2011 3:11 pm
Posts: 4
I did the resolder again. and Notta. Anyone have a place where you can find cheap ones?


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun May 01, 2011 1:23 pm
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8585
Location: -1 1/2hr. East of Belvidere,IL.-
Dmainmonroe wrote:
I did the resolder again. and Notta. Anyone have a place where you can find cheap ones?


Junkyard.
They often pop up for sale here, on the 'For Sale - Parts' board.



- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Tue May 03, 2011 12:34 pm
Offline
Site Supporter
User avatar

Joined: Mon Apr 18, 2011 4:44 pm
Posts: 365
Location: Detroit, MI
also could be the connectors that the gauge cluster plugs in to, they are p.o.s.

_________________
1997 2.4 Swapped ATX with SRT Turbo


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Jun 19, 2011 5:18 pm
Offline
Neon Enthusiast
User avatar

Joined: Tue Jul 26, 2005 6:21 am
Posts: 124
Location: Columbus & Reynoldsburg, Ohio
Worked! Thanks A Million!

_________________
99 Satin Black w/ Blue Stripe R/T Coupe
http://neons.ridespace.net/users/propilot23k/


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Mon Jun 20, 2011 5:36 am
Offline
Neon Enthusiast

Joined: Sat Sep 20, 2008 6:09 pm
Posts: 183
Location: Cincinnati, OH
Propilot23k wrote:
Worked! Thanks A Million!

I share this sentiment!
Cluster was bouncing, I noticed the cracks and resoldered all the pins just as performed in the video and the cluster has been great since, thanks a bunch! :good:

_________________
'96 SOHC mtx
Trans Swap "how-to": http://w103rtm.freevar.com
Trans Swap "how-to" Archived Sticky: viewtopic.php?f=22&t=360382


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Thu Jul 07, 2011 6:08 pm
Offline
New

Joined: Wed Jul 06, 2011 5:20 pm
Posts: 3
Hi, i followed your video and am glad to tell you that success was mine on the first try. MANY THANKS for caring enough to take the time to do the video. BArney


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Aug 21, 2011 9:41 pm
Offline
Neon Enthusiast

Joined: Wed Apr 20, 2011 8:25 pm
Posts: 91
QUESTION: by sumping needled what does he mean? my cluster does sumthign weird and i wanna knwo what it is here is teh issue

PROBLEM: cluster works fine when running no problems...when car is turned off all needles go down bu then the speedo needle goes up to about 55mph and stays there in when the car is off. But it returns to working order when the car is turned back on. What is this? jumping?


Top
 Profile


Sponsor



 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Aug 21, 2011 9:44 pm
Offline
Neon Enthusiast

Joined: Wed Apr 20, 2011 8:25 pm
Posts: 91
OH AND ALSO here is the link for thous white face stickers for whoever wants em

http://cgi.ebay.com/ebaymotors/1995-199 ... 1851wt_935


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sat Nov 26, 2011 12:22 am
Offline
New
User avatar

Joined: Sun Feb 17, 2008 4:35 pm
Posts: 15
Location: Brandon, FL
Great vid, just did this tonight and it worked like a charm!! YAY for a tach that works again!!

_________________
Big D's Performance
I'm like 7 Eleven, I'm not always doing business, but I'm always open...


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sat Nov 26, 2011 12:44 pm
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 12:04 am
Posts: 6587
Location: 55403 MNNeons.net
WOW!

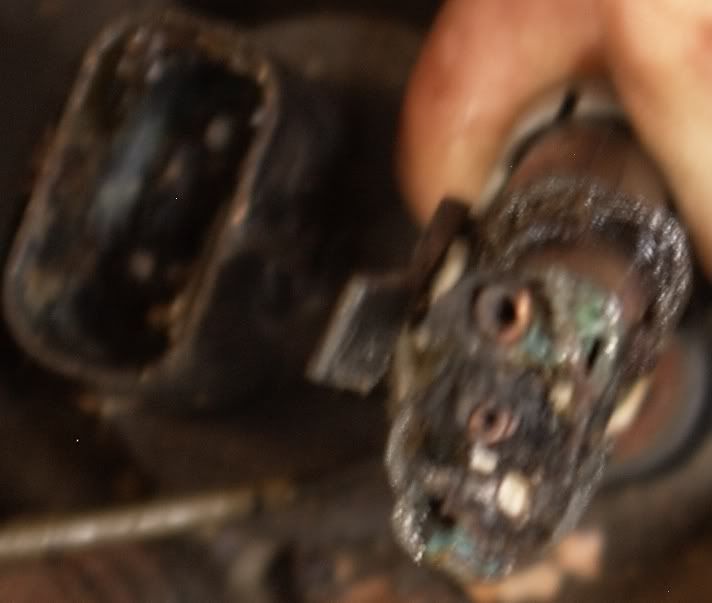

Just had an old style VSS SMOKE itself off- Was looking for fire extinguisher- Was that bad.


Dunno if it was mechanical (whatever inside rubbed thru) or electrical (Direct short circuit or connector)
What I do know is these old style are J U N K. They never seal, allowing in liquid de jour.

For the guy who did dozens of harnesses, can't believe I hadn't updated it. :blush:

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sat Feb 25, 2012 12:04 am
Offline
Neon Enthusiast
User avatar

Joined: Thu Feb 09, 2012 1:16 pm
Posts: 140
Location: Holland, MI
Does anybody know what solder to use or does it not matter?

_________________
-Tim


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Feb 26, 2012 5:01 am
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8585
Location: -1 1/2hr. East of Belvidere,IL.-
thoffmeyer wrote:
Does anybody know what solder to use or does it not matter?

Personally, I like to use the low-temp solder, since it melts / flows easier.


- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Feb 26, 2012 11:44 am
Offline
Global Moderator
User avatar

Joined: Mon Jan 11, 2010 7:14 pm
Posts: 6892
Location: Metro Detroit, Michigan
Chrysler recommends using rosin core type solder.

_________________
1995 Sport Sedan (The Frog), 2.0L sohc/atx, Bone Stock Canadian model, Belvidere built 4/94, 200,275 miles (322,297 kms) as of 07-06-14. Given to my brother.
2004 R/T, all stock, 2.0L Magnum/mtx, Belvidere built 11/03, 156,933 miles as of 06-25-14, My current DD.
20+ years Chrysler Tech


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sun Feb 26, 2012 12:42 pm
Offline
Neon Enthusiast
User avatar

Joined: Thu Feb 09, 2012 1:16 pm
Posts: 140
Location: Holland, MI
Ok good I bought some 60/40 rosin core solder

_________________
-Tim


Top
 Profile

 Post subject: Re: How To: Instrument cluster soldering repair *vid*
PostPosted: Sat Aug 16, 2014 11:57 am
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8585
Location: -1 1/2hr. East of Belvidere,IL.-
I just want to say that I (finally) did the solder board repair on one of my dash clusters, per the tips in the video, posted by the O.P.
It works great !! :good:

Nice to have a dash cluster and speedometer that works normally again...without any more random Airbag lights and tachometer & speedo needle that bounces around. :smile:


- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 73 posts ]  Go to page Previous  1, 2

All times are UTC - 7 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 0 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Style based on FI Subice by phpBBservice.nl
