 Post subject: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Thu Mar 19, 2009 11:52 am
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
Ok, I just had a quick question. For those who remember me; I'm the one that posted a video of my Silver 2000 Dodge Neon on youtube and asked for help as to why it would crank. It tried to turn over but it just wouldn't start. I also stated that my dad said It's something wrong with the wires. He said the car doesnt get the signal to ignite wich starts the car.

So I was doing my research and thinking what could be the problem. My car started before but the idle was horrible. It kept putting. I don't know if it was because of the old [5 year old] gas. Since then my dad has pumped the old gas out and put new gas in. We also installed a different ECM because the old one went out after it was idling for about 20 seconds.

Now this is when I posted the video. It's trying to turn over but wont. Is it because of the different ECM/PCM? If so, wich I think it is, does it mean Im going to have to find someone to reprogram it and how much does it cost?


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sat Mar 21, 2009 8:16 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
does anyone know? lol


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 4:44 am
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8446
Location: -1 1/2hr. East of Belvidere,IL.-
1). DEFINITELY get some fresh gasoline in there. 5-year old gas can gum up injectors, valves, piston rings, etc.

2). Do you have the "Sentry" or SKIM system activated on your car ?
If so, you will need to have the "new" PCM programmed with the VIN for it to start.

If your Neon has a gray ignition key, you have the SKIM system, and you'll need to have the VIN programmed by the dealer.

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 1:48 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
NickKo wrote:
1). DEFINITELY get some fresh gasoline in there. 5-year old gas can gum up injectors, valves, piston rings, etc.

2). Do you have the "Sentry" or SKIM system activated on your car ?
If so, you will need to have the "new" PCM programmed with the VIN for it to start.

If your Neon has a gray ignition key, you have the SKIM system, and you'll need to have the VIN programmed by the dealer.

- Nick



I think I have the "Sentry" system. My Dodge Neon has a black ignition key.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 2:13 pm
Offline
Neon Mechanic
User avatar

Joined: Thu Jul 22, 2004 2:08 pm
Posts: 5784
Location: Cantonment, FL
duval103 wrote:
I think I have the "Sentry" system. My Dodge Neon has a black ignition key.

Nope. Black means no chip to program.

Grey keys have the chip though.

_________________
--04' SXT--
Click me for throttle body sensor locations

Click me for the "Key Dance" instructions


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 2:19 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
Floyd wrote:
duval103 wrote:
I think I have the "Sentry" system. My Dodge Neon has a black ignition key.

Nope. Black means no chip to program.

Grey keys have the chip though.



hmmm.. So maybe its some type of wiring problem between my PCM and the ignition. I try to crank it but it doesn't start. recently it's been back firing.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 3:33 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
Here's the video of my poor baby :(



Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 3:54 pm
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8446
Location: -1 1/2hr. East of Belvidere,IL.-
Did you purchase this replacement PCM new, or used ??

Also, do you hear the fuel pump 'hum' when the key is turned 'on' (before actually cranking ??)

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 22, 2009 4:11 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
NickKo wrote:
Did you purchase this replacement PCM new, or used ??

Also, do you hear the fuel pump 'hum' when the key is turned 'on' (before actually cranking ??)

- Nick



The purchased PCM is used. (I think thats the problem because it isn't programmed to my car)

When I turn the key on I do hear a 'hum' for a split second.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 23, 2009 11:17 am
Offline
Neon Enthusiast
User avatar

Joined: Wed Jan 09, 2002 3:15 pm
Posts: 3491
Location: Pottstown, PA: 2 God-loving blocks from the Heroin Biker Bar.
Actually, that looks like a Sentry Key--it's fat and oval.

_________________
That's me, that's me - the boy with the broken halo.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 23, 2009 12:01 pm
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 10:53 pm
Posts: 8446
Location: -1 1/2hr. East of Belvidere,IL.-
Mat wrote:
Actually, that looks like a Sentry Key--it's fat and oval.

Mat.... That can't be right...... :scratch:

I have the same (black) key for my 2000 Neon, it's a base, stripped-down model, and does not have Sentry.....
I was able to replace the PCM in my 2000, without having the VIN programmed in.

My understanding is that the Gray keys (only) have the Sentry chip......
Someone please correct me if I am wrong.

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 23, 2009 12:45 pm
Offline
Neon Enthusiast
User avatar

Joined: Wed Jan 09, 2002 3:15 pm
Posts: 3491
Location: Pottstown, PA: 2 God-loving blocks from the Heroin Biker Bar.
No, Nick you may be right. I could *swear* my wife's old '00 with Sentry had a Chrysler emblem on it like that one. My '02 with Sentry key has "Neon" on it. And the more I look at it, that one does look black, not charcoal like I thought.

I thought the PL2 base Neons used the old-style trapeziodal keys....no?

_________________
That's me, that's me - the boy with the broken halo.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 23, 2009 1:13 pm
Offline
Neon Enthusiast
User avatar

Joined: Thu Aug 21, 2008 6:38 pm
Posts: 1020
Location: Virginia
I have an 03 sentry and it has a gray key with the "ram" emblem in it

_________________
LenAyala wrote:
I'm wishing you good luck, only because this is the worst idea ever.

My Project log
http://forums.neons.org/viewtopic.php?f=40&t=325889&start=280


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 23, 2009 8:45 pm
Offline
Neon Enthusiast

Joined: Sun Jul 08, 2007 4:21 am
Posts: 107
Location: Colorado Springs, CO 80930
Even if there is a skim related issue with the car it should still run for 2 seconds then die, a red light should also flash on the cluster when this happens.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 24, 2009 6:37 am
Offline
Neon Enthusiast
User avatar

Joined: Wed Jan 09, 2002 3:15 pm
Posts: 3491
Location: Pottstown, PA: 2 God-loving blocks from the Heroin Biker Bar.
^^ That's only supposed to happen 3 times. Then you get nothing.

_________________
That's me, that's me - the boy with the broken halo.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 24, 2009 7:10 am
Offline
Neon Mechanic
User avatar

Joined: Thu Jul 22, 2004 2:08 pm
Posts: 5784
Location: Cantonment, FL
Mat wrote:
^^ That's only supposed to happen 3 times. Then you get nothing.

Yup did this on a friends SRT after the Stage 3 install. Dodge sent the PCM with the wrong VIN in it. New flash and it fired right up.

_________________
--04' SXT--
Click me for throttle body sensor locations

Click me for the "Key Dance" instructions


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 24, 2009 8:26 pm
Offline
Neon Enthusiast
User avatar

Joined: Tue May 24, 2005 7:55 pm
Posts: 3393
Location: Pasadena, MD
You may need your vin flashed into the ecu. But, for leaf spring juice and giggles, unhook your cam position sensor and crank it for a few seconds and see if it does anything good.

_________________
2001 R/T - Racelands/Iceman
98 DOHC Sedan - Mopar PCM/Iceman/Fun
1995 Dodge ACR NYG Sedan - broken
1993 Plymouth Voyager - 2.5/5-speed
1991 Dodge B350 15 passenger - War Wagon
Struggles of Band Practice


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Fri Mar 27, 2009 10:47 am
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
Everything is working fine. The only problem is that its not firing. I have new spark plugs, a programmed ECU, new fuel and new fuel pump. For some reason its not getting the signal to fire. Does anyone know how to fix this problem?


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Fri Mar 27, 2009 2:20 pm
Offline
Neon Enthusiast
User avatar

Joined: Tue May 24, 2005 7:55 pm
Posts: 3393
Location: Pasadena, MD
Try unplugging the cam sensor. It wont throw a code for it, but it wont start. I had the same problem when I swapped my head, and it wouldn't spark. If not that, then also try changing the crank position sensor. They go bad with no warning.

_________________
2001 R/T - Racelands/Iceman
98 DOHC Sedan - Mopar PCM/Iceman/Fun
1995 Dodge ACR NYG Sedan - broken
1993 Plymouth Voyager - 2.5/5-speed
1991 Dodge B350 15 passenger - War Wagon
Struggles of Band Practice


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Fri Mar 27, 2009 8:39 pm
Offline
Neon Enthusiast

Joined: Fri Apr 13, 2007 10:34 am
Posts: 3812
Location: Wadsworth Ohio
duval103 wrote:
hmmm.. So maybe its some type of wiring problem between my PCM and the ignition. I try to crank it but it doesn't start. recently it's been back firing.



That means it is getting spark. You wouldn't get a back fire without any spark, especially on a cold engine.
Are the plug wires in the correct location?

_________________
desmodromic wrote:
You have to remember what's important here, while they make New humans everyday, they'll never make another Neon.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Fri Mar 27, 2009 10:21 pm
Offline
Neon Enthusiast
User avatar

Joined: Tue May 24, 2005 7:55 pm
Posts: 3393
Location: Pasadena, MD
My car would do the same thing with the cam sensor hooked up. Crank crank crank crank, pop, crank crank, etc etc.

_________________
2001 R/T - Racelands/Iceman
98 DOHC Sedan - Mopar PCM/Iceman/Fun
1995 Dodge ACR NYG Sedan - broken
1993 Plymouth Voyager - 2.5/5-speed
1991 Dodge B350 15 passenger - War Wagon
Struggles of Band Practice


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Sun Mar 29, 2009 10:02 am
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
INVUJerry wrote:
My car would do the same thing with the cam sensor hooked up. Crank crank crank crank, pop, crank crank, etc etc.


How did you fix it? My car is running now. When the cam shaft sensor is hooked up it doesn't want to start. But when the sensor is disconnected it cranks and runs fine.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Mon Mar 30, 2009 6:35 am
Offline
Neon Enthusiast
User avatar

Joined: Wed Jan 09, 2002 3:15 pm
Posts: 3491
Location: Pottstown, PA: 2 God-loving blocks from the Heroin Biker Bar.

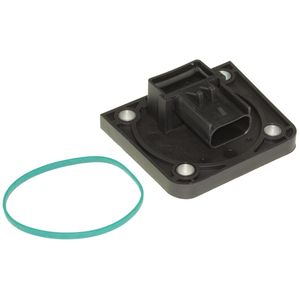

Then replace the cam sensor.

_________________
That's me, that's me - the boy with the broken halo.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 31, 2009 12:49 pm
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
Ok. Im going to autozone this afternoon to get a new cam shaft position sensor
I'll let you guys know the results later on tonight or some time tomorrow.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 31, 2009 6:43 pm
Offline
Neon Enthusiast

Joined: Tue Mar 17, 2009 5:46 pm
Posts: 151
How are you guys posting pictures? I have some pictures to document the clips in removing a door panel I want to post. I tried to paste the picture and there's no place to insert or attach.


Top
 Profile


Sponsor



 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Tue Mar 31, 2009 8:19 pm
Offline
Neon Enthusiast
User avatar

Joined: Wed Jan 09, 2002 3:15 pm
Posts: 3491
Location: Pottstown, PA: 2 God-loving blocks from the Heroin Biker Bar.
You are trying to link to a site like photobucket, right?

_________________
That's me, that's me - the boy with the broken halo.


Top
 Profile

 Post subject: Re: 2000 Dodge Neon. ECM (PCM) Installed
PostPosted: Thu Apr 02, 2009 11:04 am
Offline
New

Joined: Wed Feb 25, 2009 2:38 pm
Posts: 24
tguertin wrote:
How are you guys posting pictures? I have some pictures to document the clips in removing a door panel I want to post. I tried to paste the picture and there's no place to insert or attach.



you need the image url. if the image in already on the computer just right click on the pic and go to properties. from there a box should pop up with the image's URL or ADDRESS. copy that address and place it inside "[img] [img] ".


So your post should be [img](address or URL here without parenthases)[img]


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 27 posts ]

All times are UTC - 7 hours [ DST ]


Who is online

Users browsing this forum: Fritz and 6 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Style based on FI Subice by phpBBservice.nl
