 Post subject: SOHC
PostPosted: Thu Mar 03, 2011 8:20 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
Nothing to see here, never mind. But thanks for stopping by!



_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Fri Mar 04, 2011 11:25 am
Offline
Administrator
User avatar

Joined: Wed Jan 09, 2002 1:59 am
Posts: 2654
Location: Dodge Central
Low earth orbit?


"Thats no moon, that's a Space Station!"

_________________
Mods: Auto TB | Magnacore Wires (Red) | Red Valve Cover | Mopar PCM | Booger Bushings | Oil Pressure Gauge | | Neon Pedals | Embroidered Head Rests | Thermal Exhaust | Rear Strut Tower Bars | Chrome Radiator Brackets | Iceman Intake | Phrogman Short Shifter | 16x6 Snow flake wheels w/Goodyear F1 (205 50/ZR16)|15.59@88


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 5:40 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI

Double check all of your measurements and dimensions for anything you fabricate or have made.
It's your problem if something is wrong.



The 2.4 block differs from the 2.0 block in that ALL 10 bolts are the same length. You need 10 of the "long" 2.0 SOHC head bolts. Chrysler part number 6503562. List price is $6.50 each. M11 x 1.50 x 210.00mm long. You need to cut each one to length, 195mm will do just fine. I would hand fit each one to make sure all the holes in your block are drilled and tapped to the same depth so that the new length bolts do not bottom out in the holes. If you cut them too short you don't engage enough threads in the block.


You can use a Mazda timing belt - Gates T117 or equivalent in your brand of choice. 109 teeth. This one happens to be .87" wide. No one seems to be able to find one wider without having some made to order (good luck with that). I would change the belt more often because of the narrower width vs Neon timing belt. This belt will tend to wander a little on the gears, get used to it. This is a tight fit over the tensioner for assembly. It would get better with a thin headgasket or a shaved head. You would not want to run this with a thicker head gasket, you will be too far from center for the spring loaded adjuster in the SRT-4 tensioner to work properly.

If you use the Mazda belt, you can simply use the OEM Litens SRT-4 tensioner right out of the box.



If you want to fab your own tensioner you'll be on your own for that and for whatever you choose to use for a timing belt length.


Cam gear. There are a few choices.

You can use any old stock or aftermarket 2.0 SOHC gear by fabricating a spacer that is ~.225" thick. Put it between the face of the cam and the gear. You might consider pulling the locating pin out a little so that it enters the hole in the back of the gear a little farther to help you time it correctly. The snout of the cam is .710" diameter.





You can use an AEM 3-bolt DOHC gear with it flipped around in a weird way with no spacer. I found this about 5 years ago. The bolts will be on the back side, the head will face the side of the cylinder head. But at least you can adjust it.




Or, you can use any old 2.0 DOHC gear, OEM or aftermarket, with a spacer more like .375" thick. I would personally rather keep any spacers as thin as possible. You would need to extend the locating pin here, it's not that long and you lose the reference point.


If you get creative you can use a 108 tooth belt only by doing something else for a tensioner. Gates T264 or equivalent in another brand. This belt is 1.00" wide. Or you can use a stock belt and do whatever you can dream up, that's the same as it has ALWAYS been.


Side engine mount. Same old Stratus mount deal is easy. You need to mill/grind/whatever on the upper right-side leg so that the timing belt does not rub on it. You will need to remove most of the material on the side in about the 2:00 position. I will get a better picture of it soon.


_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 6:20 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
Not really much to ask for questions, it's all there. No comments are really needed. If you don't like the way something is suggested, just find your own way like has been suggested for 7 or 8 or more years now.

Ed did the work on the timing belt, I didn't have enough patience to look thru the books.

I'm not building one to actually run and drive, other people can do that. Why dabble in this when a 2.4 DOHC has so much more easy potential simply because of the cams you can put in the head.

"bigrick", if you really had one and you claim it had 135TQ then I doubt you really had one. That's a pretty low number and sounds fairly fake to me. 2.0 makes around 135TQ, 2.4 makes more unless something is wrong.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 6:43 pm
Offline
Neon Enthusiast
User avatar

Joined: Mon Dec 07, 2009 10:14 pm
Posts: 342
Location: Winnipeg, MB, Canada
I purchased a 2.4L conversion kit from Ed Peters last summer, here are my parts in comparison:

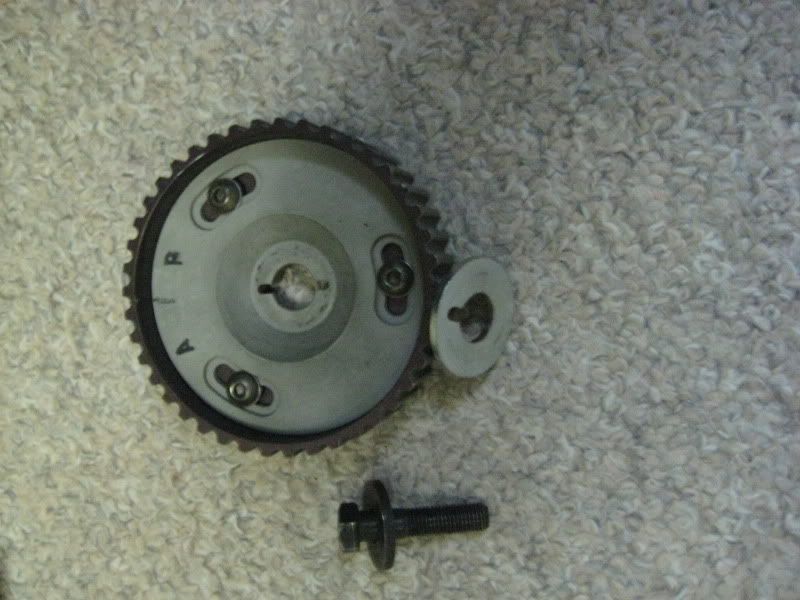

AEM cam gear with spacer (sand blasted)

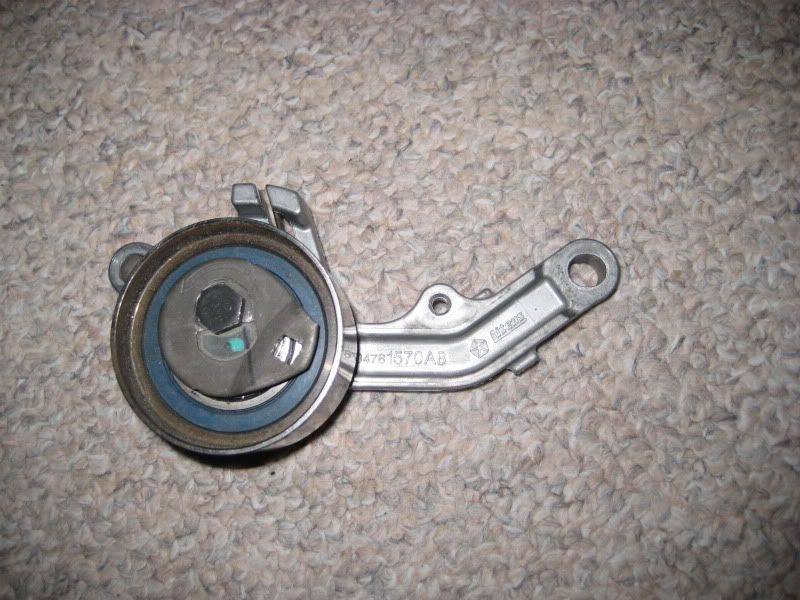

SRT4 belt Tensioner

_________________
Aka Magner
Early built 94 ACR log: http://forums.neons.org/viewtopic.php?f=51&t=378006


Last edited by Mag_ner on Mon Mar 07, 2011 7:21 pm, edited 2 times in total.

Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 6:43 pm
Offline
Neon Mechanic
User avatar

Joined: Wed Nov 29, 2006 12:37 pm
Posts: 5132
Location: Nashua, NH
:shock: :scratch: You!!!!!!!

_________________
Burks21 wrote:
Because most SRT owners now are broke teens or idiots looking to slam their car the cheapest way possible. So they buy crap off eBay, racelands, etc.


Feedback: http://forums.neons.org/viewtopic.php?f=36&t=382275


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 6:46 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
I know you can modify a Litens SOHC tensioner. Most people don't have the ability to weld aluminum. And they won't know what to do with the legs anyway. That method works too but this is easier.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:06 pm
Offline
Neon Enthusiast
User avatar

Joined: Mon Dec 07, 2009 10:14 pm
Posts: 342
Location: Winnipeg, MB, Canada
Here's more:

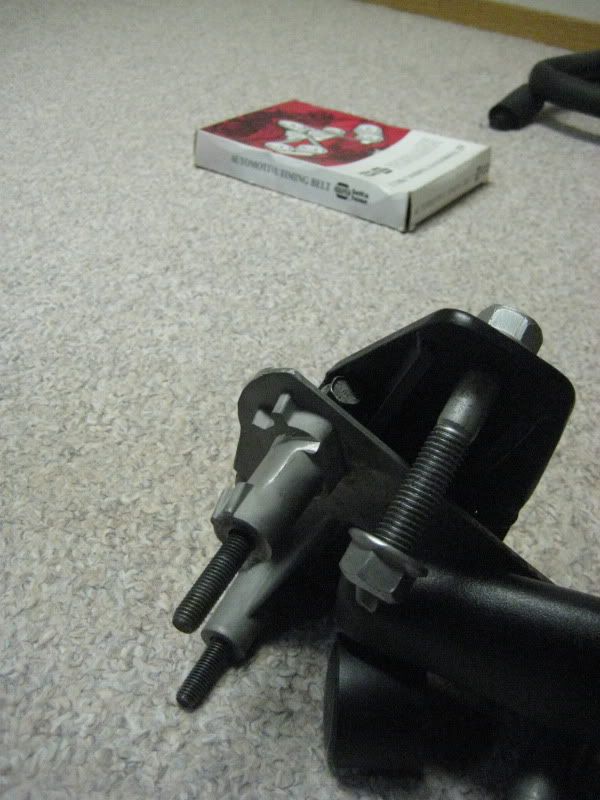

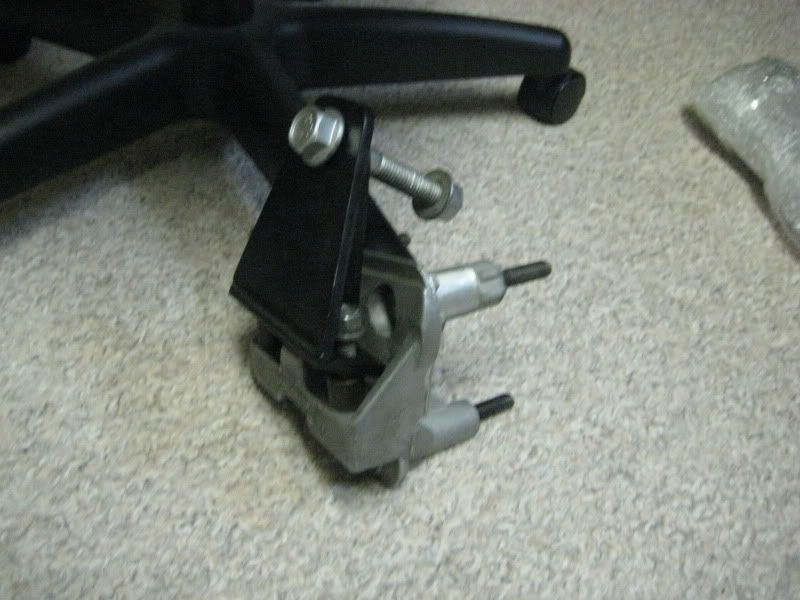

Mounting bracket

Notice the notch cut out to accommodate the belt

This is the Mazda timing belt used on the B2000 pickup from the late 80's

I have not yet install or used these parts as my project is currently on hold until summer, therefore I have no idea how any of these parts perform. I will update as I progress.

Now that the cat is out of the bag so to speak, I'm willing to help anyone out with questions on these parts.

Big Thanks to Jeff for the writeup!

_________________
Aka Magner
Early built 94 ACR log: http://forums.neons.org/viewtopic.php?f=51&t=378006


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:27 pm
Offline
Neon Mechanic
User avatar

Joined: Wed Nov 29, 2006 12:37 pm
Posts: 5132
Location: Nashua, NH
Timing belt possibility?

http://shop.polybelt.com/408L100-Black- ... cstrfrnt06

_________________
Burks21 wrote:
Because most SRT owners now are broke teens or idiots looking to slam their car the cheapest way possible. So they buy crap off eBay, racelands, etc.


Feedback: http://forums.neons.org/viewtopic.php?f=36&t=382275


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:32 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
I saw that one and others. I'm reluctant to suggest it because I don't know enough about it from that brief description.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:40 pm
Offline
Sponsoring Dealer
User avatar

Joined: Mon Oct 25, 2004 7:16 pm
Posts: 11785
Location: Muscoda, WI
Don't forget cam magnet

_________________
COME TO MY NEXT NEON MEET May 3, 2014

http://forums.neons.org/viewtopic.php?f=83&t=409775

PM me for T-350 transmission parts, rebuilds, and modified OBX diffs and shorter shift arms!

Now making no-90 intakes, battery trays, and cables!

https://www.facebook.com/KinnetticKreations


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:46 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
I'm talking mechanical parts. Wiring is all you.

I don't use a cam sensor so I don't care. My last 2.4 used an OEM plate to block off the sensor area in the DOHC head under the cam cam, didn't even need one to cover the hole with a sensor bolted to the head.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:55 pm
Offline
Sponsoring Dealer
User avatar

Joined: Mon Oct 25, 2004 7:16 pm
Posts: 11785
Location: Muscoda, WI
I don't need a cam sensor either but most people do.

Nice job spoon feeding with missing info! :rofl:

_________________
COME TO MY NEXT NEON MEET May 3, 2014

http://forums.neons.org/viewtopic.php?f=83&t=409775

PM me for T-350 transmission parts, rebuilds, and modified OBX diffs and shorter shift arms!

Now making no-90 intakes, battery trays, and cables!

https://www.facebook.com/KinnetticKreations


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 7:56 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
you fix it, i'm busy

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 8:05 pm
Offline
Sponsoring Dealer
User avatar

Joined: Mon Oct 25, 2004 7:16 pm
Posts: 11785
Location: Muscoda, WI
I don't waste my time on SOHC's. I think my 18s are bigger than any SOHC cam, and the stage 4's that are coming definitely are.

_________________
COME TO MY NEXT NEON MEET May 3, 2014

http://forums.neons.org/viewtopic.php?f=83&t=409775

PM me for T-350 transmission parts, rebuilds, and modified OBX diffs and shorter shift arms!

Now making no-90 intakes, battery trays, and cables!

https://www.facebook.com/KinnetticKreations


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Mon Mar 07, 2011 10:12 pm
Offline
Neon Enthusiast
User avatar

Joined: Mon Feb 05, 2007 9:37 pm
Posts: 1218
Location: Ulysses, NE
Mag_ner wrote:
Here's more:

Mounting bracket


Your homemade adapter will require that you cut a bunch off of the passenger side motor mount. I have one exactly like it, and I had to cut off almost an inch from the mount.

_________________
402-276-3806. Bobble relocation kits !!!!!!!!!$55 shipped!!!!!!!!!!


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Mar 08, 2011 4:45 am
Offline
Sponsoring Dealer
User avatar

Joined: Mon Oct 25, 2004 7:16 pm
Posts: 11785
Location: Muscoda, WI
fattirebicycles wrote:
Mag_ner wrote:
Here's more:

Mounting bracket


Your homemade adapter will require that you cut a bunch off of the passenger side motor mount. I have one exactly like it, and I had to cut off almost an inch from the mount.


I have one too, I don't recall having to do that.

_________________
COME TO MY NEXT NEON MEET May 3, 2014

http://forums.neons.org/viewtopic.php?f=83&t=409775

PM me for T-350 transmission parts, rebuilds, and modified OBX diffs and shorter shift arms!

Now making no-90 intakes, battery trays, and cables!

https://www.facebook.com/KinnetticKreations


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Mar 08, 2011 9:01 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
well then, will be assembling this weekend, looks like it's sold "as is". didn't expect that!

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Mar 08, 2011 9:53 pm
Offline
Neon Enthusiast
User avatar

Joined: Fri Oct 09, 2009 1:08 pm
Posts: 2197
Location: 39° 46' 5" N / 86° 9' 29" W
I prefer "fpoons" myself, more commonly referred to as the "spork".

On a side note, wasn't this thread locked? What the... Cool stuff anyway. Can't wait to try it... I mean, I didn't say anything. Nevermind.

_________________
SPARKZ wrote:
Am I the only one that notices any post of actual work on "shale green thing" Neon is done by his wife while he snaps pics..
Or maybe he just mastered the female mind, Tought it how to work on a car, and made her believe she likes it so he can relax


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Mar 08, 2011 10:08 pm
Offline
Neon Enthusiast

Joined: Tue Jan 23, 2007 3:22 pm
Posts: 1338
Location: Nova Scotia
cheap route if people want to run srt pistons now and keep there mag head and intake. Wonder how that would hold up.

_________________
2008 SRT-4 Cailber(bc coils, RT 3 piece rear bar set, NW intake, AGP FM, My GIG, 19x9.5 RPF1, AEM wideband, gizmo eye lids, painted tails and much more. )
2007 GSXR 600
2004 SRT-4 Stage 3 (11.8 at 118mph on 17 street tires)
1998 Neon Convertible (Kaption audio old car, now srt-4 swapped)
2005 SRT-4 ACR Stage 3 (EX took)
2001 SRT-4 swapped (parted out)
1997 2 door, full srt swap, 288hp 311tq(SOLD)
1998 Neon r/t, full bolt ons (SOLD)
3 kitted neons (sold)


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Mar 08, 2011 10:17 pm
Offline
Yellow Cake
User avatar

Joined: Sat May 24, 2008 3:20 pm
Posts: 3051
Location: Baltimore, Maryland
Wonder if this thread will be Pandora's Box for the sohc die hards. Will check back in over the summer for "how did you get that to work" threads.

_________________
The Metric system is the tool of the devil! My car gets forty rods to the hogshead, and thats the way I likes it. - Granpa Simpson

First Generation Part Numbers

Feedback Thread


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Mar 09, 2011 6:51 am
Offline
Site Supporter
User avatar

Joined: Thu Aug 31, 2006 12:23 am
Posts: 14542
Location: Sacramento, CA
shale green thing wrote:
I prefer "fpoons" myself, more commonly referred to as the "spork".

On a side note, wasn't this thread locked? What the... Cool stuff anyway. Can't wait to try it... I mean, I didn't say anything. Nevermind.

Jeff started it... easy enough for him to lock it and unlock it as he sees fit. I never did see why people thought this was so complicated that it required they be spoon, or spork fed... nor why if so many thought it was a good idea, why there weren't hundreds of them running around. Look at the 2.4 swap, everybody has one now.

_________________
Silence may be golden...
But duct tape is silver.
' ̿'\̵͇̿̿\з=(•̪●)=ε/̵͇̿̿/'̿'̿


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Mar 09, 2011 7:48 am
Offline
Neon Enthusiast

Joined: Wed Jan 09, 2002 11:26 am
Posts: 1527
Location: Minneapolis, MN
PurpleNeon wrote:
shale green thing wrote:
I prefer "fpoons" myself, more commonly referred to as the "spork".

On a side note, wasn't this thread locked? What the... Cool stuff anyway. Can't wait to try it... I mean, I didn't say anything. Nevermind.

Jeff started it... easy enough for him to lock it and unlock it as he sees fit. I never did see why people thought this was so complicated that it required they be spoon, or spork fed... nor why if so many thought it was a good idea, why there weren't hundreds of them running around. Look at the 2.4 swap, everybody has one now.


it was another thread in engine performance

viewtopic.php?f=8&t=375789

_________________
everyone runs faster with a knife


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Mar 09, 2011 9:16 am
Offline
Site Supporter
User avatar

Joined: Thu Aug 31, 2006 12:23 am
Posts: 14542
Location: Sacramento, CA
Jeff initially had this thread locked.

_________________
Silence may be golden...
But duct tape is silver.
' ̿'\̵͇̿̿\з=(•̪●)=ε/̵͇̿̿/'̿'̿


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Mar 09, 2011 10:04 am
Offline
Neon Enthusiast

Joined: Wed Jan 09, 2002 11:26 am
Posts: 1527
Location: Minneapolis, MN
never saw it locked when I looked, he was probably still updating it while it was.

we had a nice conversation about it though

_________________
everyone runs faster with a knife


Top
 Profile


Sponsor



 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 5:06 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
Matt Wiggins wrote:
"Thats no moon, that's a Space Station!"



Prepare for docking



_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 5:29 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
meh.... it runs

lightly worked R/T head, Crane 14 with Crane SOHC springs, R/T exhaust manifold and cat, DOHC intake. Best of all? Auto trans!

linkie

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 5:57 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 16, 2002 3:16 am
Posts: 2306
Location: The Garage
Slow.

_________________
--> My official feedback thread <--
-->For Sale: 1G, 2G, SRT<--


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 6:43 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
I know, it took almost 2 weeks to do this. An hour here, an hour there, takes forever.


lolz

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 7:05 pm
Offline
Neon Enthusiast

Joined: Wed Jan 09, 2002 11:15 am
Posts: 3475
Location: NC
:like:

Are you going to hit the dyno? Best wildcard setup for making guesses on how much it puts down!


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 7:07 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
dyno? hell no, it's my daily driver/winter beater.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Sun Nov 27, 2011 7:37 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
Modern's 2.4 swap power steering bracket needs to be notched for the heater hose on the head. Sawzall time.
Rotate the cam magnet 90 degrees counter clockwise or let it crank for 5-6 seconds before it starts.
All the "normal "stuff - headbolts cut to length, cam gear spacer, Mazda belt, machine the leg on the side mount for belt clearance, etc.
Pick an intake manifold of your choice and adapt as needed.
I just added a second connector to the harness for the coolant temp sensor instead of cutting it off and moving it. Now there are two plugs on the harness, wired in parallel so a functioning sensor on either one is all it needs.


etc etc blah blah blah


The DOHC head on this engine was eating coolant. Half gallon in 7 miles on my drive to work each day. It had to be a crack in the exhaust port since it didn't burn any and I never found any in any cylinders. Compression checked out great at 190-210 across the board with the DOHC head. I had planned on pulling the cat and starting it up to see which cylinder was spraying but I said screw it and just pulled the head with both manifolds still bolted on. I didn't have a fresh DOHC head (other than my GOOD heads for the race car) and didn't want to spend $250 getting a valve job done on a DOHC head. So my R/T head became the donor from my Lapis Coupe I junked last fall.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Nov 29, 2011 12:58 pm
Offline
Neon Enthusiast

Joined: Sat Dec 25, 2010 11:47 am
Posts: 288
Location: Pittsburgh, PA
as far as the motor mount rubbing, what about on a 2gn, do you happen to know if an srt motor mount plate would work without modifacation?

_________________
My Progress Log http://forum.2gn.org/viewtopic.php?t=51 ... sc&start=0


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Nov 29, 2011 7:29 pm
Offline
n00b
User avatar

Joined: Wed Jan 09, 2002 6:57 am
Posts: 7335
Location: western WI
Most likely have to cut down that same leg since the belt has to go right thru it. SRT uses the same bolt pattern for the side mount as every other 2.4 from '95-up (except the 2.4 in the Caliber and the Mitsu 2.4).


Runs great! Beat on it on the way home from work tonight a little. No leaks, idles just fine. Check compression this weekend just to see where it's at. Maybe put on the adjustable gear if I can get the new center section finished up for the AEM gear. More likely next week when I get more spare time.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Nov 29, 2011 9:05 pm
Offline
Site Supporter
User avatar

Joined: Thu Jul 10, 2003 7:46 pm
Posts: 3461
Location: Schofield Barracks, Hawaii
WINNING

_________________
98 Neon R/T (SRT'd 2.4 swap 20G Turbo Full MS2 Standalone) - storage
96 Neon - SRT4 swap, T850, 50 trim
13 Dodge Dart Rallye - family car, 1.4L Turbo, 6 speed, citrus peel
Feedback:
http://forums.neons.org/viewtopic.php?f=36&t=354472


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Tue Nov 29, 2011 11:49 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 10:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
IBTL :tongue:

Can I lock this now?

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Nov 30, 2011 1:41 am
Offline
Site Supporter
User avatar

Joined: Mon Feb 09, 2009 7:21 pm
Posts: 2462
Location: Greenwood, Indiana
jimbo in MI wrote:
IBTL :tongue:

Can I lock this now?


No

_________________
1995 Highline Coupe SOHC MTX. BEING PARTED OUT.

2008 Subaru Impreza 2.5i


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Nov 30, 2011 2:02 am
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 10:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
Power curve? What does it drive/feel like, 2L DOHC, 2L Mag, 2.4L?

Which cam are you using?

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Nov 30, 2011 3:48 am
Offline
Site Supporter
User avatar

Joined: Thu Aug 31, 2006 12:23 am
Posts: 14542
Location: Sacramento, CA
jimbo in MI wrote:
IBTL :tongue:

Can I lock this now?

It is sort of defying a .org tradition not to lock it, huh? :smile:

_________________
Silence may be golden...
But duct tape is silver.
' ̿'\̵͇̿̿\з=(•̪●)=ε/̵͇̿̿/'̿'̿


Top
 Profile

 Post subject: Re: SOHC
PostPosted: Wed Nov 30, 2011 11:52 am
Offline
Neon Enthusiast
User avatar

Joined: Mon Dec 07, 2009 10:14 pm
Posts: 342
Location: Winnipeg, MB, Canada
I didn't notice much lope from the crane 14 cam. Is it pretty tame for a 2.4L?
Do you notice where it starts to run out of breath?

_________________
Aka Magner
Early built 94 ACR log: http://forums.neons.org/viewtopic.php?f=51&t=378006


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 96 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 7 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 0 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Style based on FI Subice by phpBBservice.nl
