 Post subject: nv-t350 rebuild + quaife install problem!
PostPosted: Thu Nov 20, 2008 10:21 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware

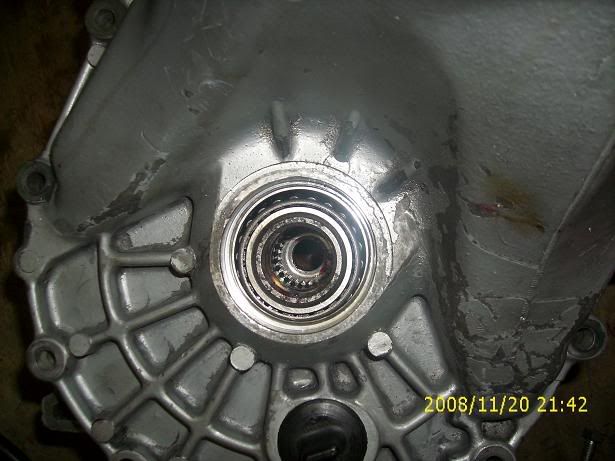

Well here is what I did. Took a 3.94 case, pulled both shafts out, cleaned it very nicely, put in new end bearings, new seals etc. Took everything out of the 3.55 case and put it in the 3.94 case. Because the 3.55 case had some metal in the bottom of it. Well everything was going great, had the correct shim and all, diff had a turning torque of 6-10 inch lbs. But the problems start with the ring gear! :ireful: Put the ring gear on, go to put the case together.. and we have problems. It's almost like the ring gear is too big.. i have no clue. I even tried a different diff. same problem. I spent an hours trying to figure it out.. just couldnt get it. on top of that my 15$ of gasket maker is drying. :ireful:


any ideas?

thanks
sean

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu Nov 20, 2008 10:43 pm
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 11:53 pm
Posts: 8380
Location: -1 1/2hr. East of Belvidere,IL.-
Maybe i am confooosed too, but i'll try to help....

I *thought* that the 3.55 ring gear, and 3.94 ring gear, are "particular" to the case they are going into ? (Meaning cases are different)

I am certain that someone else will either confirm that I am correct, or that i am a total dufus......

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu Nov 20, 2008 11:52 pm
Offline
Global Moderator
User avatar

Joined: Wed Jan 09, 2002 3:27 am
Posts: 2717
Location: Atlanta, GA
common problem.
slightly tilt the ring gear away from the pinion as you drop the gearbox down.
if you don't, the ring will hit the pinion (as in your case).
you'll need to probably jiggle the gearbox to get it to drop.
make sure the 3 or 4 shafts are lined up.

****you should really be using anaerobic sealer.

_________________
'99 R/T Coupe, 153 whp 2.0, stock cams.
'97 ACR Sedan, Retired SSC Car
'12 RAM 1500 Hemi Crew Cab

FS: PT Valvetrain, PT Alternator Brackets, 24 lb injectors!


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 6:57 am
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 11:53 pm
Posts: 8380
Location: -1 1/2hr. East of Belvidere,IL.-
Dave99rt wrote:
common problem.
slightly tilt the ring gear away from the pinion as you drop the gearbox down.
if you don't, the ring will hit the pinion (as in your case).
you'll need to probably jiggle the gearbox to get it to drop.
make sure the 3 or 4 shafts are lined up.

****you should really be using anaerobic sealer.

Glad to know that I am wrong (or a dufus) in this instance. :blush: :grin:

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 12:23 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
I do use anerobic sealant.. thats what the mopar gasket maker is, comes in a tube.. its red. So youre saying drop the gearbox down onto the bellhousing? I was doing it the opposite way.. bellhousing down onto gearbox. In order for the shafts to line up perfect i gotta use a little screw driver on one of them.. but then she drops down. This was such a pita yesturday..

So what actually is the pinion that it is hitting, I dont know too much about the gears and all.. only what I had to work on. Here is how i tried this.

I know its a leaf spring juice load of sealant.. but my last case leaked a bit so i wasnt taking any chances.. i hate leaks.

Btw i took off the output shaft bearing and put it on the bellhousing holding it in place with grease.. some guys do that method and it stays there. I'll try again... eh.

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 12:40 pm
Offline
Neon Enthusiast
User avatar

Joined: Sat Jan 19, 2002 1:21 am
Posts: 1894
Location: arvada, colorado
Yes lay the bellhousing down, face down then lay the diff in place with the cage bearing. Pack the bearing with grease so the bearing dont fall forward while installing the case.
once you get the tranny sitting over the bellhousing then wigle the shifters and a long small flat head works perfect to guide them inplace.

_________________
BOOSTSOUL= JOKE


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 2:26 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
ok .. still no go. I just looked and the ring gear that i checked again was from a 3.94.. i just checked the ring gear from the 3.55 and im pretty sure there IS a difference. I dont have a dial big enough to measure the diameters.. but i put a piece of wire around them to measure em.. and the 3.94 ring gear.. IS bigger then the 3.55 ring gear by enough to f this whole thing up. I'm gunna swap the ring gears and i betcha she falls into place. :ireful: :mad: worse part of the build right here.. hands are pink and black from grease so is everything around me hah. man

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 4:30 pm
Offline
Neon Enthusiast

Joined: Sun Oct 31, 2004 9:36 pm
Posts: 857
Location: Thunder Bay / Brantford
Dear god that's and excessive amount of sealant.

_________________
http://www.cardomain.com/profile/fixitmattman
Top 5 Repititive Questions:
1. Will SRT-4 ____________ fit my car?
2. I bought an ebay turbo, what else do I need?
3. Is this noise normal?
4. How do I fix/repair/replace a busted __________?
5. Cams?

ALL YOUR ANSWERS ARE HERE!!!!!


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 4:33 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
yes it is :lol: like i said i cannot stand a leak. I put a good bit on it last time and it leaked a tiny tiny bit.. so none of that anymore.

Put on the 3.55 ring gear for the 3.55 gear set up. Fits like a glove, first try, popped right in place.

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 6:20 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
sob, lost a shifter seal twice in a row. oh well its still goin in sunday.. I'll probably put a write up together of my mtx build. I cant wait to feel the difference with the quaife tho

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Fri Nov 21, 2008 10:08 pm
Offline
Global Moderator
User avatar

Joined: Wed Apr 17, 2002 11:53 pm
Posts: 8380
Location: -1 1/2hr. East of Belvidere,IL.-
Crazy3rdgen wrote:
ok .. still no go. I just looked and the ring gear that i checked again was from a 3.94.. i just checked the ring gear from the 3.55 and im pretty sure there IS a difference. I dont have a dial big enough to measure the diameters.. but i put a piece of wire around them to measure em.. and the 3.94 ring gear.. IS bigger then the 3.55 ring gear by enough to f this whole thing up. I'm gunna swap the ring gears and i betcha she falls into place.

So there IS a difference...... I just couldn't remember what it was. I guess I am 'partially' vindicated.

I don't *think* the extra (excess?) sealer is going to hurt anything.....

- Nick

_________________
-1995 4-dr SOHC ATX= "Organ Donor"
-1998 2-dr SOHC MTX= 52mm TB; Maddog STS
-1999 4-dr DOHC ATX= UDP, Kirk Intake
-2000 Ply.LX with MTX = Maddog STS; CAI; Magnaflow muffler

-1971 Ply.Scamp SL6cyl. (TRADED for '83 Ddg.Rampage)
-1968 Chry.300 w/440 V8 (sold)
"MoPar or No Car"


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sat Nov 22, 2008 2:30 pm
Offline
Global Moderator
User avatar

Joined: Wed Jan 09, 2002 3:27 am
Posts: 2717
Location: Atlanta, GA
Crazy3rdgen wrote:
.... on top of that my 15$ of gasket maker is drying.

Crazy3rdgen wrote:
I do use anerobic sealant...

it can't be drying, it only dries in the absence of air/oxygen.

i typically just run a thin bead b/c once sealed, it's extremely thin (zero clearance).

extra sealant shouldn't matter (except it's expensive), it should all squeeze in/out once torqued down.
wipe off the excess once done, it not, it'll catch every piece of dirt/grime that comes in contact with.

_________________
'99 R/T Coupe, 153 whp 2.0, stock cams.
'97 ACR Sedan, Retired SSC Car
'12 RAM 1500 Hemi Crew Cab

FS: PT Valvetrain, PT Alternator Brackets, 24 lb injectors!


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sat Nov 22, 2008 3:23 pm
Offline
Site Supporter
User avatar

Joined: Thu Aug 31, 2006 1:23 am
Posts: 14542
Location: Sacramento, CA
It can dry in the absence of air, but not only in the absence of air. It's actually cured in the presence of metal... metal ions cause the reaction that cures it.

_________________
Silence may be golden...
But duct tape is silver.
' ̿'\̵͇̿̿\з=(•̪●)=ε/̵͇̿̿/'̿'̿


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sat Nov 22, 2008 4:59 pm
Offline
Global Moderator
User avatar

Joined: Wed Jan 09, 2002 3:27 am
Posts: 2717
Location: Atlanta, GA
PurpleNeon wrote:
It can dry in the absence of air, but not only in the absence of air. It's actually cured in the presence of metal... metal ions cause the reaction that cures it.


correct, i was referring more to his situation, and that he has it applied to the gearbox or bellhousing and that it won't dry just sitting there.

_________________
'99 R/T Coupe, 153 whp 2.0, stock cams.
'97 ACR Sedan, Retired SSC Car
'12 RAM 1500 Hemi Crew Cab

FS: PT Valvetrain, PT Alternator Brackets, 24 lb injectors!


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sat Nov 22, 2008 5:33 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
which is why i was real happy the next day i went out there and it was still icky.. then it dawned on me as to how it actually cures.

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sat Nov 22, 2008 6:07 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9297
Location: NJ - just outside NYC
It will stay icky for a loooong time. I mean years.

V

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - 2 sets available


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sun Nov 23, 2008 5:42 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
okkk, maybe vitor or someone else can chime in here.

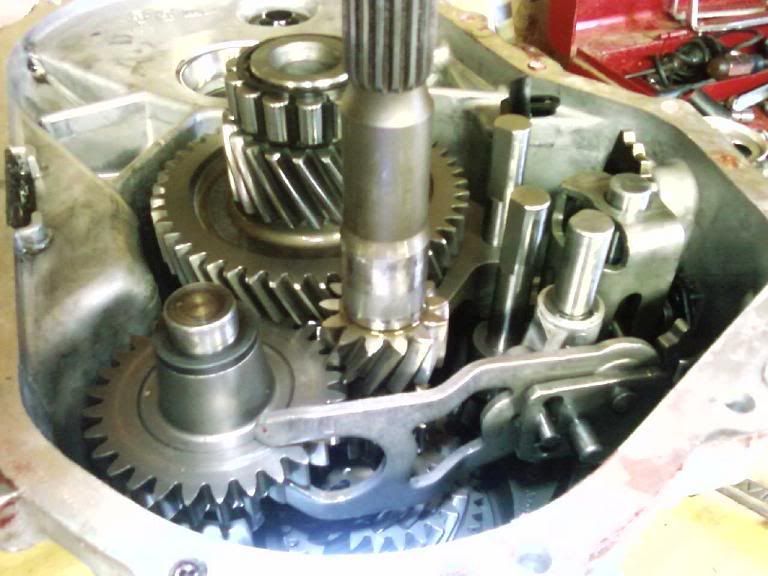

Car will not go into reverse.. everything else checks out great. Im thinking i used the reverse gear from my 3.94 trans instead of the one out of the 3.55 trans.. I didnt even think they were different? Are they different? Maybe i did something wrong..

thanks

sean

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sun Nov 23, 2008 7:29 pm
Offline
Global Moderator
User avatar

Joined: Fri Jan 18, 2002 8:53 am
Posts: 1039
Location: West Bend, Wisconsin
Reverse is the same between 3.94 and 3.55 the gear engages first ifrst gear. There is some weird linkage and levers to get it to do that. You probably missed one or put something in wrong when you swapped everything over.

If you take it apart again, you can get reverse to engage with the belhousing off to see if you got everything right.

Bob

_________________
2010 Jeep SRT8
2007 Sierra Denali
2008 R1
2001 ///M5


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sun Nov 23, 2008 7:39 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9297
Location: NJ - just outside NYC
Don't forget plastic washer that goes on reverse idler.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - 2 sets available


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sun Nov 23, 2008 7:53 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
yeh i know i didnt forget that little black washer.. hmm i thought i did it all right... but guess not.

Damn thing still spins all of 3rd and the car is all over the road. The 3.55 helped but not enough ha. Atleast i'll have better mpg for cruise. Its SOOO smooth though. The trans feels crisp.. just when i throw it in reverse it wont go and you can hear something smacking.. not a bad sound, just like metal hitting metal in a nice way

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Sun May 16, 2010 10:29 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
bump on this trans not going into reverse.. have the bellhousing off not too sure what to look for

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 4:06 am
Offline
Global Moderator
User avatar

Joined: Fri Jan 18, 2002 8:53 am
Posts: 1039
Location: West Bend, Wisconsin
You are going to have to search for some pics showing the bellhousing off of known good transmissions and do a comparison. If you post some pics of what you are seeing there might be some here that can visually tell you whats wrong.

Until we see it, we really don't know what to say.

Bob

_________________
2010 Jeep SRT8
2007 Sierra Denali
2008 R1
2001 ///M5


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 6:25 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9297
Location: NJ - just outside NYC
For reference:

http://dope.dhs.org/car_stuff/3.94-178K ... 009999.JPG

http://dope.dhs.org/car_stuff/3.94-178K ... 010000.JPG

http://dope.dhs.org/car_stuff/3.94-178K ... 010002.JPG

I'd check to see if selector fork are in right location.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - 2 sets available


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 6:37 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
hmm, hard to say.. things look to be in the same spot

Pic of my trans with no reverse

http://i35.photobucket.com/albums/d196/ ... c002-3.jpg

"Easy thing to check, look into the case like in your picture, the reverse gear is already contacting the input shaft, make sure it also is seated on the output shaft, if it is, you did it right. If it is not, time to tear down the output shaft to swap the hubs direction."

thats what drakito told me.. hard to comprehend but i'll have to do my research when i get off work.

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 8:40 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9297
Location: NJ - just outside NYC
You have a FSM handy? if not PM me, i'll hook ya up.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - 2 sets available


Top
 Profile


Sponsor



 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 10:30 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
Vitor wrote:
You have a FSM handy? if not PM me, i'll hook ya up.

yes I have a complete manual for the t350 on the computer, its all black and white.. Thought i did everything right, i may have to rip it all apart again

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Mon May 17, 2010 7:05 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
ok i'll have pics soon but check this weird thing out.. I was looking below the input shaft at the small straight cut gear.. where it matches the other straight cut gear on the output shaft.. and they dont even touch.. WEIRD

I have another gear set laying around from the 3.55 and I put those together to see and its the same thing.. I KNOW the reverse set up is all straight cut gears, what the hell is the point of the straight cut gears if none of them ever touch, I know the straight cut gears can only get along with STRAIGHT cut gears and not any other ones. RAHHH i need a master mtx neon expert. I pulled the gear sets out, put them back in and no reverse.. really what could have happened, thats weird, i have all 5 gears and no reverse, so weird

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 12:08 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
pretty sure my reverse gear is upside down lol

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 4:57 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
ok flipped my reverse gear around.. this looks better right? See anything wrong? I'm gunna look through the fsm to make sure.


_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 5:03 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
yeah thats right now.. Drakito ,,, u rebuild these how u didnt pick up on that i dont know. And everyone else, easy fix i feel dumb but :scratch: this site feels dead

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 6:29 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9297
Location: NJ - just outside NYC
That matches my second linked photo.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - 2 sets available


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 7:02 pm
Offline
Neon Enthusiast

Joined: Mon Mar 20, 2006 4:57 pm
Posts: 1014
Location: Mid CT
Crazy3rdgen wrote:

Your reverse gear is upside down (so he says late to the party :blush: )

Sorry brotha, but with race season coming into play, many of us are busy beavers nowadays. I just got back to this thread now :pardon:

MB


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Tue May 18, 2010 7:22 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
its ok .. I knew it couldnt have been something major.. IM looking at this reverse gear thinking, how the f does this work it cant even contact any of the other straight cut gears, wow this is a useless gear hmmm, oh sht its upside down.. hahahah

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Wed May 19, 2010 6:30 pm
Offline
Sponsoring Dealer
User avatar

Joined: Wed Jul 11, 2007 11:38 am
Posts: 856
Location: Southern UT
I didn't miss it, check my PM's to you again. Your link was broken when you originally typed to me, so I was going off of what you had said to me. My original answer was based on the synchro hub ring, as you implied you had done a Full rebuild of both shafts. Here is my PM to you if you didn't see it.

Quote:
Yup its in backwards and easy to fix, the single 13mm bolt on the side of the case holds the reverse gear idler shaft in, you can yank it out and flip the gear very quickly. It should look like this:


I'm glad you got it fixed!

_________________
The original Neons.org transmission guru.
First 4.12 FD, .81 5th, manual transmission with welded selectors, Quaife, and more!
14 year project and going, Still daily driven! SCCA SM car with 2.1L, ITB's, 11:1CR, JE/Eagle/Crane 18/fully worked block/oiling/etc. Old specs: 174.9 whp/143.5wtq New specs, still waiting for the dyno!
Little Dragon Racing Transmission video rebuild guides now for sale For all NVT350/350HD and variants. From mild to wild builds


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Wed May 19, 2010 6:48 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
yeh i got it man thanks a lot

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu May 20, 2010 8:14 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
ok.. different diff, new beraings, whats the chance of having a good turning torque, if its close im going with it

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu May 20, 2010 9:54 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
of course it would be too good to be true, i have 3 shims laying around small medium large, all are too small, even stacking 2 of them i have like 10-12 with a 15 inch lb spike. too tight. :nea:

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu May 20, 2010 9:59 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
looking for the list of shim part numbers. and lookin, and lookin

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

 Post subject: Re: nv-t350 rebuild + quaife install problem!
PostPosted: Thu May 20, 2010 10:42 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 17, 2007 6:49 pm
Posts: 2845
Location: Delaware
getten to be a pro with seperating this case and putting it back together wow, but I got the larger shim i had to work.

it helps when u tighten down the whole case rather then a few bolts :grin:

_________________
1997 base model coupe - 2.4 swapped, crane 18s, amm, AFX LT, squirted. Daily Driver - FOR SALE

Sean Gallagher
Aim: Crzy3rdgen
PayPal: Crzy3rdgen@aol.com

Leaving me feedback? Please post here
http://forums.neons.org/viewtopic.php?f=36&t=335460


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 39 posts ]

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: greenmachineiijh and 4 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Style based on FI Subice by phpBBservice.nl
