 Post subject: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 2:58 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
First gen
  • These have a 23 spline hub
  • They are availible with 4 or 5 lug hubs
  • Both 4 and 5 bolt are 100mm bolt pattern
  • Cast #4626244-5 (4-Stud) (1995 and 1996)
  • Cast# 4626704-5 (5-Stud) (1995 and 1996)
  • The 95 to (1997?) originally had snap ring bearing retainers
  • The (1998?) and up got a plate type bearing retainer. Early models sometimes got these as part of a TSB (#02-02-97 Rev. A) to correct a popping noise.
  • Clevis width approximately 0.970"

Second Gen
  • These have 26 spline hubs
  • Will require an axle swap on first gen
  • Are 100mm bolt pattern
  • They require machining to fit first gen
  • Clevis width approximately 1.270"

SRT
  • These have 26 spline hubs
  • They require machining to fit first gen
  • Allows use of larger brakes
  • Are 100mm bolt pattern
  • Clevis width approximately 1.270"
  • Will require cutting or changing to shorter inner tie rod ends

Shadow
  • These have 26 spline hubs
  • Will require an axle swap on first gen
  • They directly bolt onto to first gen
  • 1991 and up are the best ones. Older ones may fit (unconfirmed)
  • They have a bolt-in wheel bearing assembly
  • Most are 100mm bolt pattern but there are Caravan hubs which are 5x114.3
  • Brake caliper bracket bolts on
  • Allows use of larger brakes or stock Neon brakes with proper caliper bracket
  • Clevis width approximately 0.970"
  • Caution*** must use larger knuckle specific ball joint pinch bolt***

PT Cruiser
  • These have 26 spline hubs
  • LATE ’02 and up PT Cruiser N/A manual transmission car are the preferred units. Wrong ones will alter your turning radius.
  • Allows use of larger brakes
  • Will require an axle swap on first gen
  • They require machining to fit first gen
  • Are 100mm bolt pattern
  • Clevis width approximately 1.270"

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 3:00 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
I would like to consolidate all this information in one place. Put your info below, I will revise my post to reflect any info anyone has. Hopefully we can clear the confusion a little bit.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 3:48 pm
Offline
Site Supporter
User avatar

Joined: Thu May 20, 2010 3:40 pm
Posts: 1894
Location: Wheeling, IL
*Subscribed for PURE AWESOMENESS!!!* :grin:

Hey...when did you become a mod...?

_________________
My Project Log.

The Tao of The Neon.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 6:42 pm
Offline
Sponsoring Dealer

Joined: Sat Jun 13, 2009 10:06 pm
Posts: 4957
Location: Janesville, Wisconsin
since hes turned into a neon guru lol this info woulda been super helpful for about a week ago but its cool
idk if ur gonna include hub info and that the bearing info as well?
which is help ful for running 2gn axles and dss
taylor

_________________
Lost Boy #1 BANGARANG
Black Star Performance HID retrofitter
2.0l spinning to 9k itb boost motor EFR turbo
Formerly known as Loroku
KCCO


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 6:46 pm
Offline
n00b

Joined: Wed Jan 09, 2002 7:57 am
Posts: 7291
Location: western WI
All 26 spline hubs use the larger 2nd Gen / PT / "Shadow" / DriveShaftShop axles.

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 6:58 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
loroku wrote:
idk if ur gonna include hub info and that the bearing info as well?
which is help ful for running 2gn axles and dss
taylor


The hub info is available here in other posts, but I suppose if it helps keep everything straight it could be added. You do not need to swap hubs for DSS axles if you just use the shadow knuckles.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 7:00 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
2G also have vaarying turning circles by varying location of tie rod hole. Again, steel wheel variants are preferred, 36ft turn radius, where R/T had 39' and srt-4, a truck like 41'

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 8:59 pm
Offline
Sponsoring Dealer

Joined: Sat Jun 13, 2009 10:06 pm
Posts: 4957
Location: Janesville, Wisconsin
JeffB#2 wrote:
All 26 spline hubs use the larger 2nd Gen / PT / "Shadow" / DriveShaftShop axles.

i was talking more about the fact that the 00 and 01 hubs run the 33mm thick bearing with the 42mm wide shaft so that in conjuction with the 00 or 01 bearing you can run them in 1gn knuckles thats all i was saying uptown had an awesome post from mnneons
taylor

_________________
Lost Boy #1 BANGARANG
Black Star Performance HID retrofitter
2.0l spinning to 9k itb boost motor EFR turbo
Formerly known as Loroku
KCCO


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 9:10 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
Some (if not all!) 00 and 01 axles are 23 splines.

I prefer 2003+ knuckles, guaranteed wide bearing (used srt-4 bearing, cheaper than regular 2G bearing - same as turbo pt, regular Pt, etc).

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 9:50 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
Vitor wrote:
Some (if not all!) 00 and 01 axles are 23 splines.


Can someone confirm those spline counts?

NAPAONLINE

EMPI

Autozone

and others all show 26 spline for 2000 and up. Those, and other sites also show interchange for all models between 2000 and 2005 except SRT.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 10:03 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
For example:

Axle Part No 4668952AE fits 2000 and 2001

For 2002, there is new Part No. 4668914AA that descriptions says 2002-2005

2003 shows addition of part #'s for srt-4 components.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Jul 12, 2011 11:13 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
I believe the difference of 00 and 01 to the 02+ is the width of the hub/wheel bearing and not the spline count.

The aftermarket seem to have a "fitzall" axle that is good for all these years.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 12:56 am
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
I have told a few of you this, but it should be public knowledge.

There is a large advantage to running 91+ Shadow knuckles. The knuckle is taller, but only taller from the center of the wheel bearing down. It is about 1" longer in the area from the center of the wheel bearing to the balljoint.

This has advantages especially on lowered vehicles. This will bring the lower control arms more level with the steering linkage for reduced bump steer. It is similar to shimming the rack up like some people do.

The taller knuckle also helps roll center. That is something I do not completely understand, but lowering the lower control arm apparently acts like a lever that when cornering prevents body roll. In any case, many people (with different types of car) add balljoint extensions, do knuckle swaps, and relocate the control arm to accomplish this. Mustang and early Chevelle guys do this all the time to get better handling.

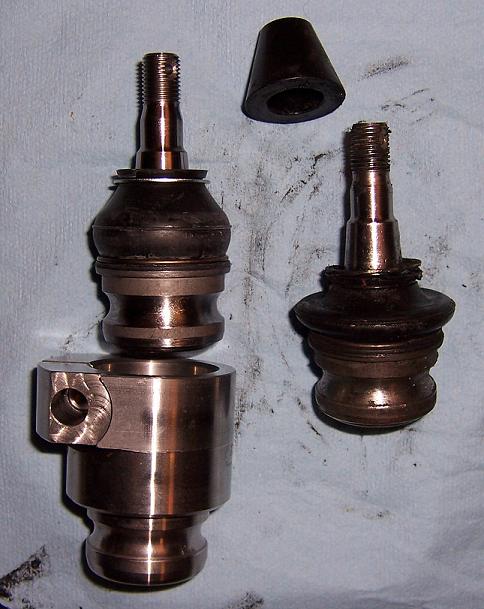

Examples of extensions.



_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 1:15 am
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
Do you have any idea on how much the turning radius is affected using 01-early 02 pt knuckles?

I bought a set to machine down to use in my 98.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 9:51 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
I believe increase height on early dodge knuckle is between axle center line and strut mount bracket - not below.

Here's a P-body setup


Easily few lbs heavier than 1G neon knuckle. Fresh outta bone yard - I swear someone had done the brakes week before it was totalled out!.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 10:04 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
Shadow VS first gen.





_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 10:08 pm
Offline
Neon Mechanic
User avatar

Joined: Wed Nov 29, 2006 1:37 pm
Posts: 5055
Location: Lisbon Falls, ME

_________________
Burks21 wrote:
Because most SRT owners now are broke teens or idiots looking to slam their car the cheapest way possible. So they buy crap off eBay, racelands, etc.


Feedback: http://forums.neons.org/viewtopic.php?f=36&t=382275


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Sun Aug 21, 2011 10:10 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
mopar318 wrote:
Do you have any idea on how much the turning radius is affected using 01-early 02 pt knuckles?

I bought a set to machine down to use in my 98.


http://forums.neons.org/viewtopic.php?f=6&t=288835
Quote:
Knuckes from a manual transmission, steel wheel combo is desired as they have tie rod holes in most desirable location. As you move up in wheel size and go to turbo, the tie rod location is further out, increasing the turning circle to 41 feet, whereas the MTX/Steel wheel is in 36 foot range.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Mon Aug 22, 2011 6:41 am
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
jimbo in MI wrote:
mopar318 wrote:
Do you have any idea on how much the turning radius is affected using 01-early 02 pt knuckles?

I bought a set to machine down to use in my 98.


http://forums.neons.org/viewtopic.php?f=6&t=288835
Quote:
Knuckes from a manual transmission, steel wheel combo is desired as they have tie rod holes in most desirable location. As you move up in wheel size and go to turbo, the tie rod location is further out, increasing the turning circle to 41 feet, whereas the MTX/Steel wheel is in 36 foot range.


Mine appear to have come from a steel wheel car. I was just wondering what the different was between 01-02 and the later models. I will make sure to take pictures as I get them, machine them, and install on car.

I have a Bridgeport II CNC mill so machining is free.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Mon Aug 22, 2011 7:07 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
width of bearing possibly?

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Mon Aug 22, 2011 11:20 pm
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
Vitor wrote:
width of bearing possibly?


That should only affect how tight the axle is correct? Width of bearing would be the same as a first gen. How come axles are universal for 01+. I guess I will find out.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 6:42 am
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
ideally you want to match width of bearing to hub and consequently to axle stud.

Improper matchup and crown on end of axle wont fit or will be loose.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 8:47 am
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 1:04 am
Posts: 6587
Location: 55403 MNNeons.net
Here's from Greg(ACRMan) on the MN boards:
Greg wrote:
UptownSport wrote:
Greg,

I've read the stuff on PT/P body swaps and it kinda makes sense ...
Getting into the stronger axle thing further; parts books say 2d gen ACR has different axles.
You know if this'd be worth looking into for plus-up to 1st gen?

Thanks

Uptown

norman426 wrote:
wow stronger axles on an ACR? 2g? i never thought of it. The only thing I know of is the hub flange where the rim bolts to is 2mm thicker. Have you looked into the pt/shadow setup? but stronger axles on an acr that would be a good question for greg.

tony


The 2001 Magnum cars (ACR & R/T) used the same part number CV axle asemblies as the 2001 PT Cruiser automatic. They were stronger than the "regular" 2nd gen neon CV axle assemblies. To use these in a 1st gen car, you need to use 2000-01 neon front hubs and bearings (or equivalent) because the outer CV stub shaft is a larger diameter than the 1st gen stub. The 2000-01 front hubs have the same flange thickness as the 1st gen ACR hubs, so you get that upgrade along with your thicker axles. The 2000-01 wheel bearing is the same width as the 1st gen bearing (and fits the 1st gen knuckle), but the inner race has a larger bore to fit the larger hub. That should have been well covered in your research on the PT/P-body axle swap. Bear in mind that if you get the driver's side P-body axle, you need the Turbo P-body part to get the extra-strength piece.

If you plan to run your camber near zero, you should be able to just use both right and left 2001 PT ATX or 2001 Magnum axles. The P-body was recommended for the driver's side because it was found that the Magnum axle was a bit too long for use with -2.5 deg camber. You'll know that your CV axles are too wide if the inner joint goes "thump-thump-thump" on tight turns.

The parts situation gets a bit odd in the 2002 model year. The PT automatic does not use the same CV axle assemblies as the Magnum Neons, and to make things more confusing they made major changes early in the 2002 model year. The very early 2002 neons used the same front hubs and bearings as the 2001 neons, but just a couple of months into 2002 model year production (probably August or Sept of 2001) they widened the hub and bearing. The stub on the outer CV joint was lengthened an equal amount, so the part number of the CV axle assembly had to change. The parts catalog shows two different front hub and front wheel bearing part numbers because of this, and you need to measure the width of the bearing on the 2002 car in order to figure out which part number you need. This bearing & hub width change was done to commonize knuckle and hub machining processes between the PT Turbo and the non-turbo PT and PL.

Do not use the "wider" bearing or hub (2002-05) in a 1st gen neon knuckle. The bearing bore in the knuckle is not deep enough to properly accept the wider bearing, and the 1st gen CV stub is too short to fit the wider hub the way DCX engineering intended.


Even with Greg's explaination, managed to screw it up;
got a '02 hub by accident. 'yard had 'em both marked '01.
The hub width is deeper, and 'cause they used a wider bearing,
the seat is moved outboard.
If you cut the '02 hub, it still presses on too far and the stud-
backs hit the knuckle. :oops:

Dunno what the bearing on right is outa. All 76mm OD.
And this is CHEAP.
axles $25 ea.
Hub (usually w/ knuckle) ~$25-30
'01 Wheel bearing (BCA (US Made)PN 510057) $55
(Your's are prolly shot anyways)
JeffB#2 wrote:
If you use Shadow knuckles you will end up with some positive camber. Slot the struts for a cheapo method to fix that. Otherwise they bolt right in. If you use the Shadow knuckles, you will be able to change brake configurations to go with different rotor sizes. The "smallest" size will allow you to simply bolt your Neon calipers back on with Neon rotors. To change configurations you change out the bracket that the caliper bolts to. The Neons don't have a separate bracket t mount the caliper, the caliper simply bolts to the knuckle casting itself. The "Unit IV" type bearings in many of the older knuckles also bolt in, no need to remove the knuckle from the car or find the spendy on-car press to get bearing out. Pop the axle out, 4 bolts go in from the back of the knuckle and bearing assembly comes right out. Nate Greer was probably one of the first here to do this and I copied him on my NYG drag car. They are heavier than Neon knuckles and instantly force you to use the bigger splined axles.

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 8:49 am
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 1:04 am
Posts: 6587
Location: 55403 MNNeons.net
Benny wrote:
Quote:
2001 PT Cruiser automatic.


I had a parts guy look up the cv axle for the 2001 pt cruiser and he said there was one part number for auto or manual. He also said the year range was 2000-2002. Just curious we use star parts( think thats what it is called)
Ben

UptownSport wrote:
The Drivers axle is the same back into the eighties, length may have slight variation.
I don't know about the passenger's side. I'd assume the manual axle would work.

Omni's had large spline four bolt hubs, they take a bit to retrofit if I recall correctly.

There are two thicknesses of the early 2d gen hub, the later one is thicker, such as the 1st gen ACR were in comparison to
the standard Neon. Be carefull, too late of model and you get the wide bearing hubs.

speedy5131981 wrote:
pt axle only works with manual transmission for neon.. in my 95 neon automatic, i used 11 in minivan rotors (same as daytona and some shadow) 60mm calipers. bolted in except i had to use the minivan pinch bolt for the ball joint. used shadow left axle. ( mine is an auto car) passengers side i took one that came out of a minivan or something and had it shortened, and rewelded together. you can shorten the old tube style axles, ends are pressed in and welded. just like a driveshaft in a rear wheel drive car.



I **think** you can swap out wide bearings by using respective hub BOLT ON retainer plate.
IOW, retainer plate is simply wider, knuckles the same. So wide bearings on your '95

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 12:34 pm
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
Thanks for that post. I searched for an hour and could not find it. When I get my 02 knuckles I will compare the bearing width to my 98 ACR bearing width. If it is the smaller bearing I should be able to use the 01/02 pt axle. The problem is I am using the intermediate shaft so there is only one axle option for the passenger side.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile


Sponsor



 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 1:07 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
Driver side axle fits into jack shaft on passenget side assuming you are using auto turbo pt jackshaft.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 1:39 pm
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
Vitor wrote:
Driver side axle fits into jack shaft on passenget side assuming you are using auto turbo pt jackshaft.


It does? Jack shaft has male end. Axle has female. Drivers side axle uses male end.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 1:56 pm
Offline
Site Supporter
User avatar

Joined: Wed Jan 09, 2002 9:42 am
Posts: 9173
Location: NJ - just outside NYC
hmm let me think about that....

Not sure now that you say that, i know i have photo of one somewhere.

_________________
Racing Neons since '98! Take it to the track.
New Goodies available @ http://www.neongoodies.com Monster Airdam, Manifold Spacers, Swaybar BRackets, etc.

Event News: Auto-X and Track Events with Motorsports Northeast.
http://motorsportsne.com/

Offset tension rods - $99 + shipping - get 'em before they are all gone.


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Tue Aug 23, 2011 2:07 pm
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
Vitor wrote:
hmm let me think about that....

Not sure now that you say that, i know i have photo of one somewhere.

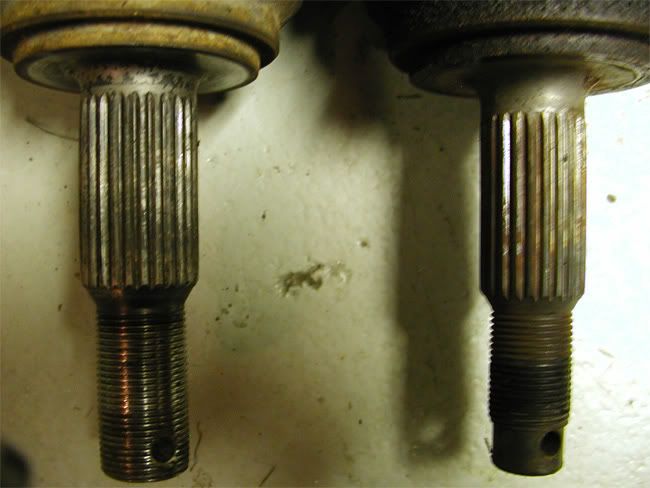

There is a convienent picture of each axle above..lol.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Wed Aug 24, 2011 11:38 pm
Offline
Neon Enthusiast

Joined: Mon Jul 19, 2010 10:46 pm
Posts: 1196
Location: Fort Wayne, IN
I received my 02 hubs and measured the bearings. It looks like I got the 33mm version. So I need to to get the wider bearings, and hubs from any 03+ car.

srt Axle does not seem to slide all the way and seat. Makes sense.

_________________
SRT swapped 98 acr coupe.
http://forums.neons.org/viewtopic.php?f=51&t=369794
99 Amethyst Expresso, DOHC, MTX, and loaded.
1997 Volvo 850 Turbo
2005 Volvo S40 T5


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Fri Sep 02, 2011 6:21 pm
Offline
Sponsoring Dealer
User avatar

Joined: Mon Mar 19, 2007 1:51 pm
Posts: 5570
Location: Portland OR / Vancouver WA
jimbo in MI wrote:
Vitor wrote:
Some (if not all!) 00 and 01 axles are 23 splines.


Can someone confirm those spline counts?

...and others all show 26 spline for 2000 and up. Those, and other sites also show interchange for all models between 2000 and 2005 except SRT.


I picked up some spare axles from an '01. They are definitely 26 spline. The '01 knuckles also have the following casting numbers; 093AE, 0279, 01

Vitor wrote:
Driver side axle fits into jack shaft on passenger side assuming you are using auto turbo pt jackshaft.


Unfortunately no. Plus they are super expensive now that FIAT got their grips on US inventory...

_________________
Formerly known as "SRTMiniMe" Project Log - '95 Sport Coupe, '96 ACR, '05 SXT - Buy/Sell Feedback


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Fri Sep 02, 2011 7:06 pm
Offline
Neon Mechanic
User avatar

Joined: Fri Apr 01, 2005 1:04 am
Posts: 6587
Location: 55403 MNNeons.net
Vitor wrote:
Some (if not all!) 00 and 01 axles are 23 splines.


That's a negatory, there, good buddy

_________________
Minnesota Neons
Home of the 13.8 How-To
°
My self worth is not the size of my thighs
My self worth is not the size of my thighs
My self worth is not the size of my thighs


Top
 Profile

 Post subject: Re: Steering knuckle info sticky
PostPosted: Fri Sep 02, 2011 7:38 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
UptownSport wrote:
Vitor wrote:
Some (if not all!) 00 and 01 axles are 23 splines.


That's a negatory, there, good buddy


That is what I thought. I could not find any info that said 2nd gens used the smaller spline axles.

_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Ball joint extenders
PostPosted: Sat Sep 03, 2011 3:09 pm
Offline
Neon Enthusiast
User avatar

Joined: Sat Jun 20, 2009 10:19 am
Posts: 2237
Location: Rocky Mount, NC
If your neon is any lower then stock and you have prothanes you will notice that your control arms are pointing upwards and that puts the bushing in a bind. Has anyone given this any thought? I'm not sure if there are any available for neon anyway.


If you don't know what i'm talking about, Google it. There doesn't need to be 5 posts saying "wuts dat?".

_________________
95' Miata
Project log : Click


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 3:11 pm
Offline
Neon Enthusiast
User avatar

Joined: Sat Jun 20, 2009 10:19 am
Posts: 2237
Location: Rocky Mount, NC
lets add pictures for the simple minded folks.



_________________
95' Miata
Project log : Click


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 3:16 pm
Offline
Site Supporter

Joined: Thu Aug 17, 2006 11:51 am
Posts: 589
Location: Corpus Christi, TX
There might not be any..... that is unless you can find a ball joint with a longer stud that can be pressed into the LCA.

I have a moog catalog some where that listed the overall lengths ..... I'll see if I can find it.

Edit: I missed the extender part ..... ill pay more attention next time.

_________________
97 DOHC Sedan - Now has project log

Currently working on the whole car!!!


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 4:02 pm
Offline
n00b

Joined: Wed Jan 09, 2002 7:57 am
Posts: 7291
Location: western WI
Better get some bigger diameter wheels too

_________________
12.31 @ 111.51 - 235WHP/186WTQ
all-motor 2.4 swap, not-so-much daily driver

http://www.boogerbushings.com


'95 Ply ACR sedan NYG
'96 Ply Coupe Lapis Blue-junked
'01 ACR Stone White
'95 Ply Sport Coupe NYG 2.4 SOHC ATX
'95 Ply Sport Coupe NYG 2.0 SOHC MTX
'98 Ram Forest Green
'78 Aspen Super Coupe
'78 Volare station wagon
'03 GT Cruiser
'68 Chevelle SS 396 4-speed


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 10:21 pm
Offline
Site Supporter
User avatar

Joined: Thu Feb 14, 2002 12:28 pm
Posts: 5274
Location: Southeast LA, and not Los Angeles
According to Jimbo, Shadow knuckles do this also.

I have thought about it because of the exact reason you state. I didn't want to be a guinea pig though and didn't feel comfortable with their looks of strength/reliability. They may be perfectly reliable and just fine though.

I'm sure you need to match the taper angle/length.

_________________
'99 White ACR Coupe-10.64@130, 20psi, 93 octane and meth Project Log - Sold
'95 MTX Lapis Coupe The First SRT swapped...brakes, wheels, tires, struts, pedals, column & wheel, cluster, wiring, PCM, seats, console, and more...NOW SOLD 12.24@113.69 slicks, 12.89@115.01 street tires


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 10:28 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.


_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

 Post subject: Re: Ball joint extenders
PostPosted: Sat Sep 03, 2011 10:37 pm
Offline
Neon Genius
User avatar

Joined: Wed Jun 04, 2003 11:17 pm
Posts: 6669
Location: Bought new house in 48821. Moving soon.
Maybe this will make it easier to see. These lines are all parallel, and pretty close to the same place on the knuckle.


_________________
World first 3.3L V6 5-speed swap. Click here for more information in my project log

niceguy wrote:
Jerk


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 105 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 1 guest


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
Style based on FI Subice by phpBBservice.nl
